SN 2024-HTS-F-009

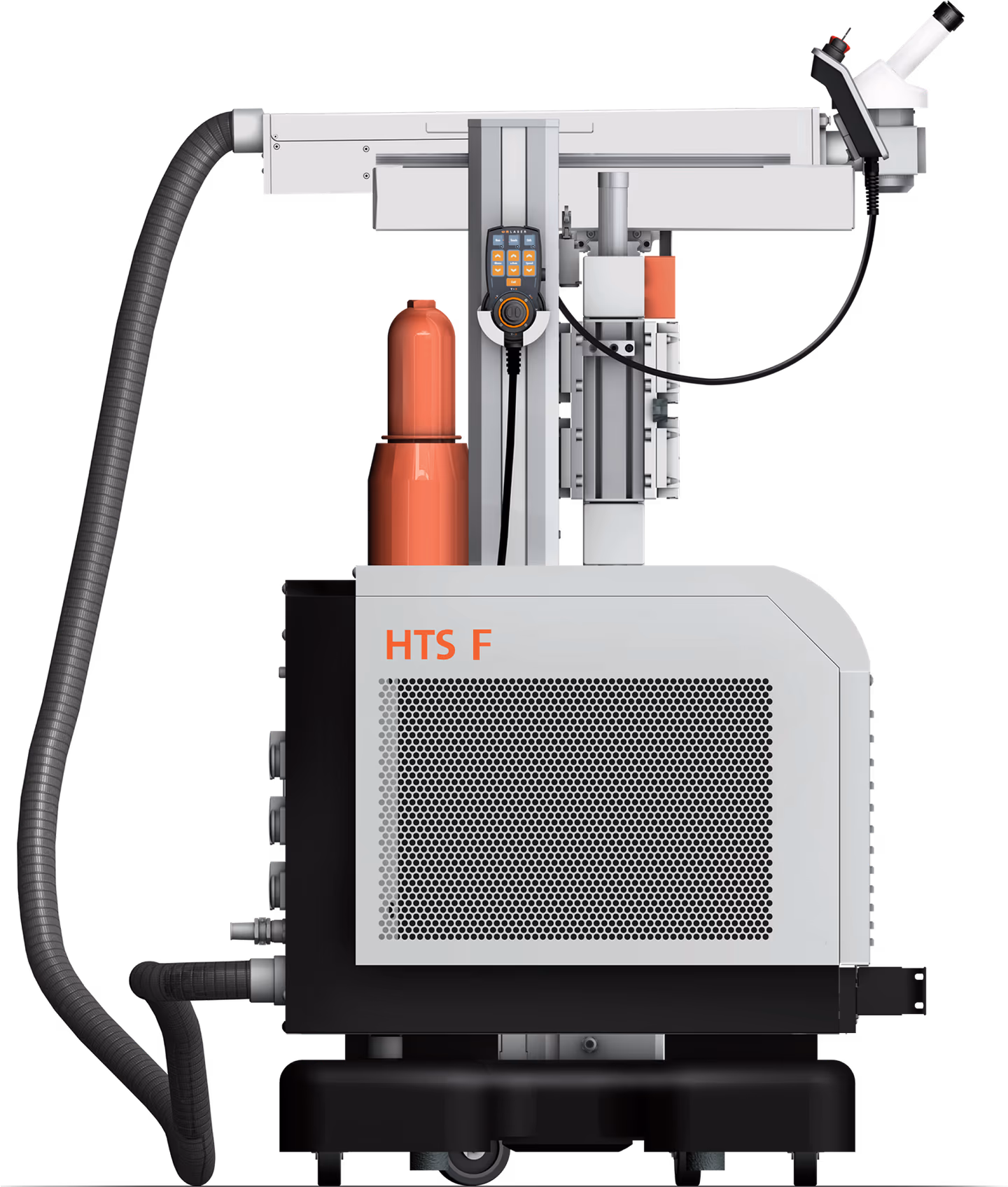

HTS-F (2024 demo)
Ex-trade-show demo unit. 280 hours, like-new, recommissioned.
HTS-F demo unit pulled from the 2024 trade-show fleet. 280 hours, like-new, recommissioned at the bench in Groß-Zimmern.
Specifications
Laser typeYb: YAG (Fiber)
Max. mean power150 W – 600 W
Line voltage (V/Ph/Hz)230 / 1 / 50
Pulse frequency0,1 Hz – 100 Hz
Pulse peak power1,5 kW – 6 kW
Pulse duration0,1 ms – 20 ms
Dimensionswidth 950 mm x height 1550 mm x length 1250 mm
Focus diameter0,05 mm – 2,0 mm
Weight250 kg (net)
Hours280
Warranty12 months
How it compares
| Model | Laser type | Max mean power | Line voltage | Pulse frequency | Pulse peak power | Pulse duration | Dimensions | Focus diameter | Weight |
|---|---|---|---|---|---|---|---|---|---|
| HTS-F (2024 demo)· this model | — | — | — | — | — | — | — | — | — |
| Laser CAB Standard | Yb: YAG (Fiber) | 120 - 300 W | 230 / 1 / 50 | 0,1 – 100 Hz | 6 - 13 kW | 0,1 – 20 ms | 750 × 1300 × 1403 mm | 0,05 – 2,0 mm | 450 kg (net) |
| HTS-F | Yb: YAG (Fiber) | 150 - 600 W | 230 / 1 / 50 | 0,1 - 100 Hz | 1,5 - 6 kW | 0,1 - 20 ms | 950 × 1550 × 1250 mm | 0,05 - 2,0 mm | 250 kg (net) |
| HTS-L | Nd: YAG (Lamp) | 120 - 300 W | 400 / 1 / 50 - 60 | 0,1 - 100 Hz | 6 - 13 kW | 0,1 - 20 ms | 950 × 1550 × 1250 mm | 0,2 - 2,0 mm | 370 kg (net) |
| LRS-F | Yb: YAG (Fiber) | 150 – 600 W | 230 / 1 / 50 | 0,1 – 100 Hz | 3,5 – 9 kW | 0,1 – 20 ms | 472 × 1270 × 1160 mm | 0,05 – 2,0 mm | 190 kg (net) |
| LRS-L | Nd: YAG (Lamp) | 120 - 300 W | 400 / 1 / 50 – 60 | 0,1 – 100 Hz | 3,5 - 9 kW | 0,1 – 20 ms | 472 × 1270 × 1160 mm | 0,2 – 2,0 mm | 190 kg (net) |
