Precision laser welding systems. One bench they came from.
The full OR Laserservice catalogue, organised by chassis.
HTSIndustrial laser welding systems
The mobile all-rounder. It rolls to the workpiece and locks on its brakes – motorised X/Y/Z and R axes, joystick control, 0.01 mm track precision. Welded at the tool's place of use: no dismantling, minimal downtime.

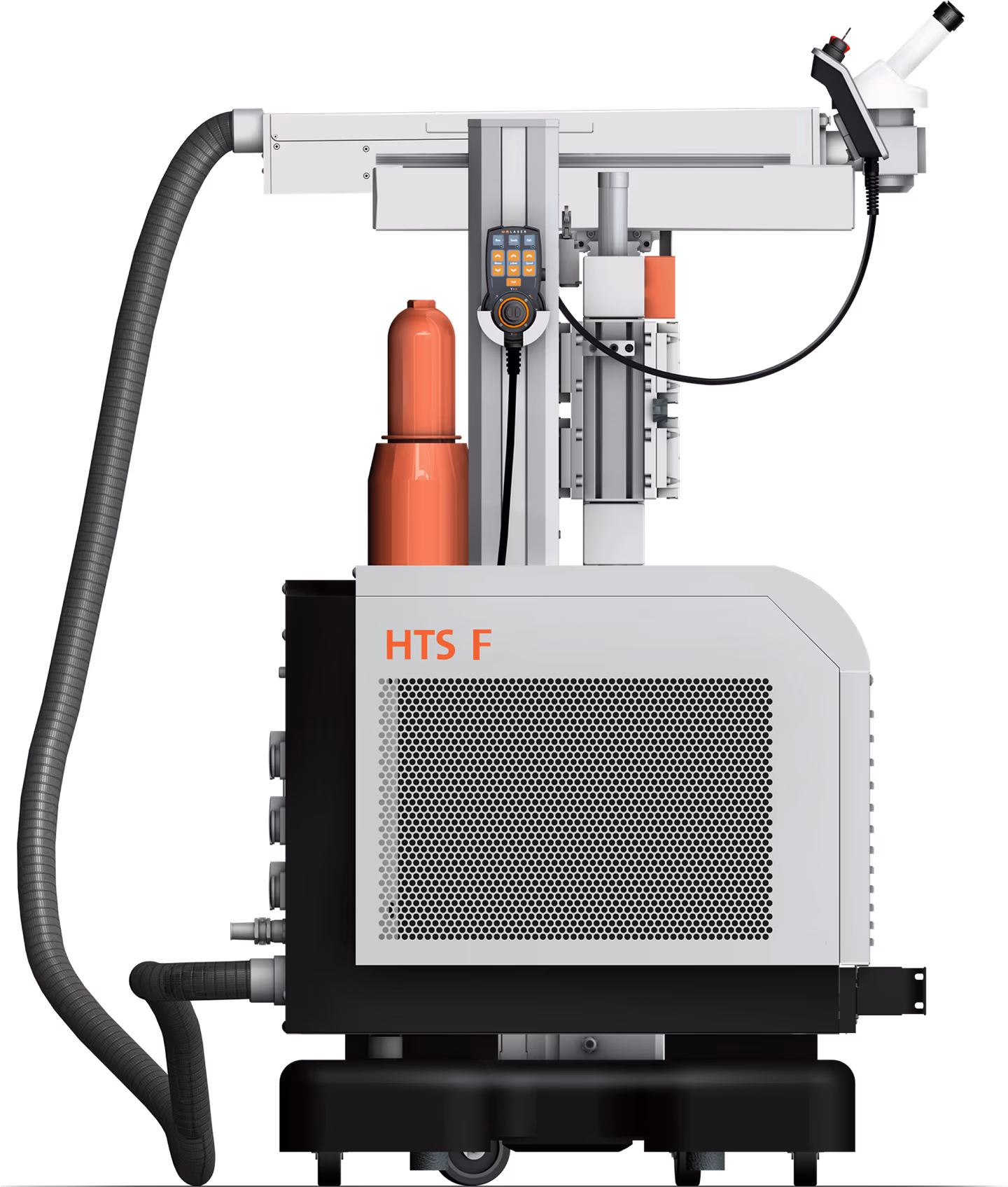

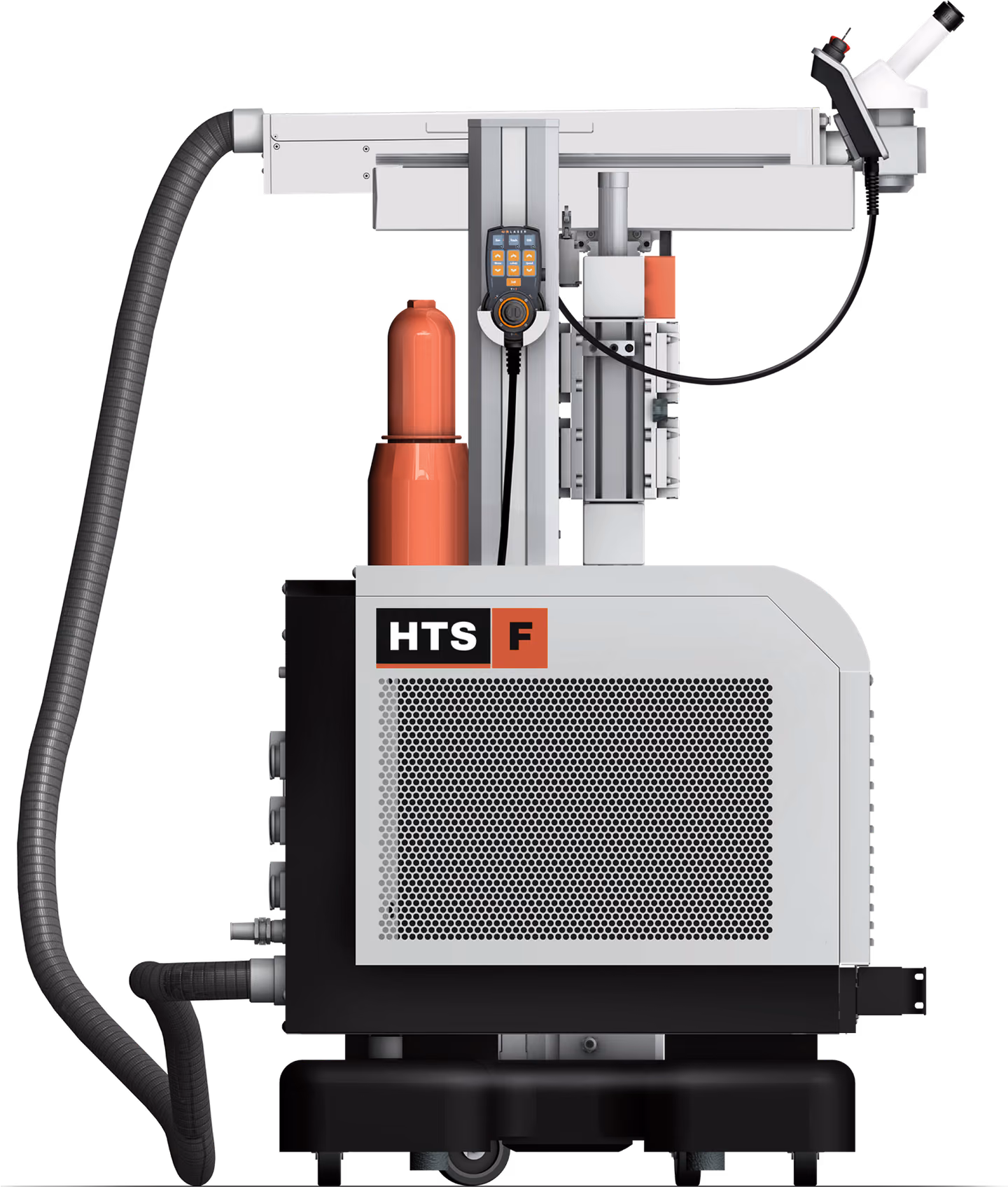

HTS-F
Laser technology for large and small work pieces.
HTS-L
Laser technology for large and small work pieces.
LRSTabletop laser welding systems
The bench family. Compact, ergonomic and quickly ready for use – motor-controlled X-Y-Z table, joystick control, touchscreen. Cost-efficient welding for small series and individual parts.
LRS-F
Fibre-laser welding on a motor-controlled table. Cost-efficient for small series and single parts.

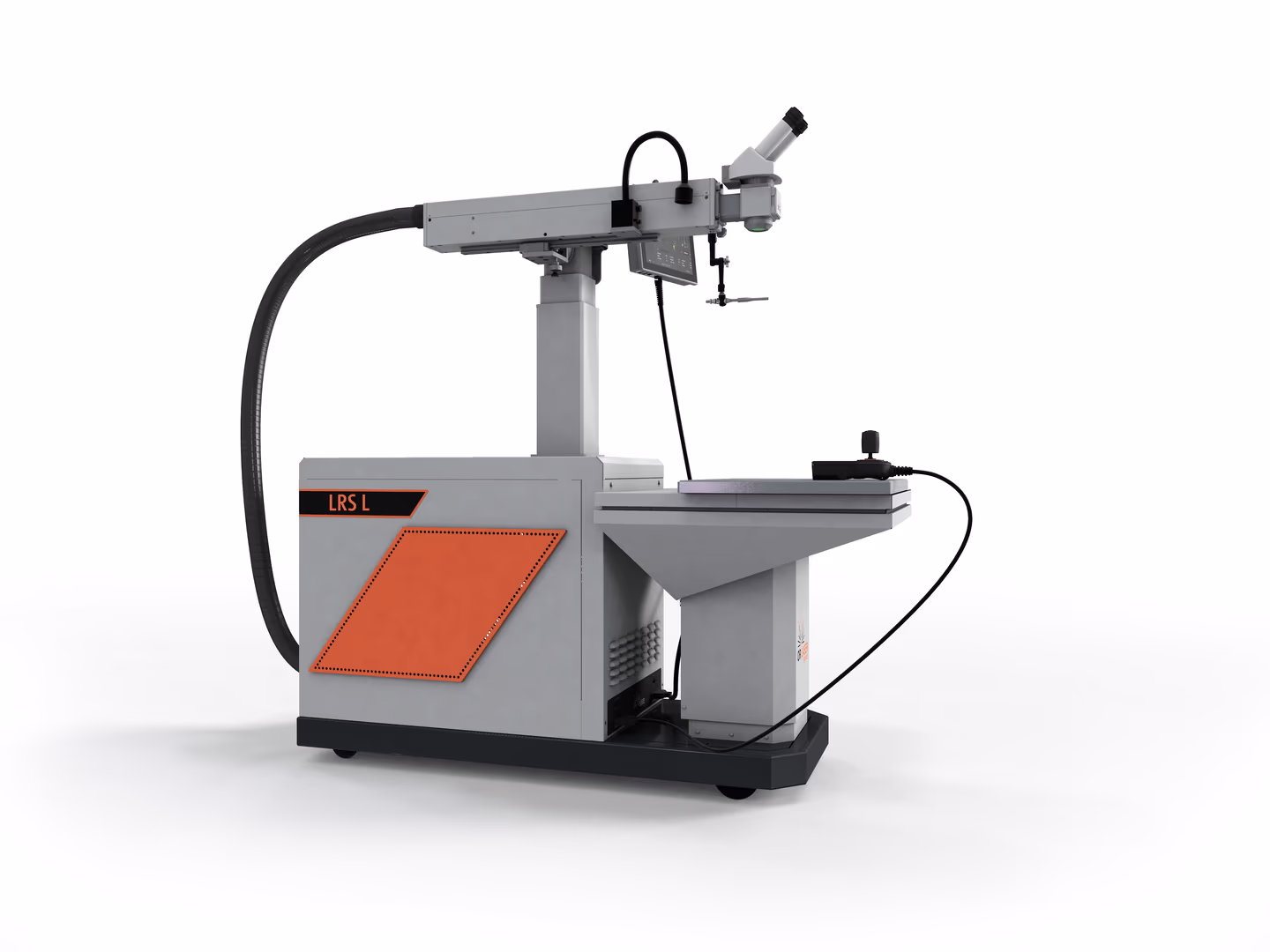

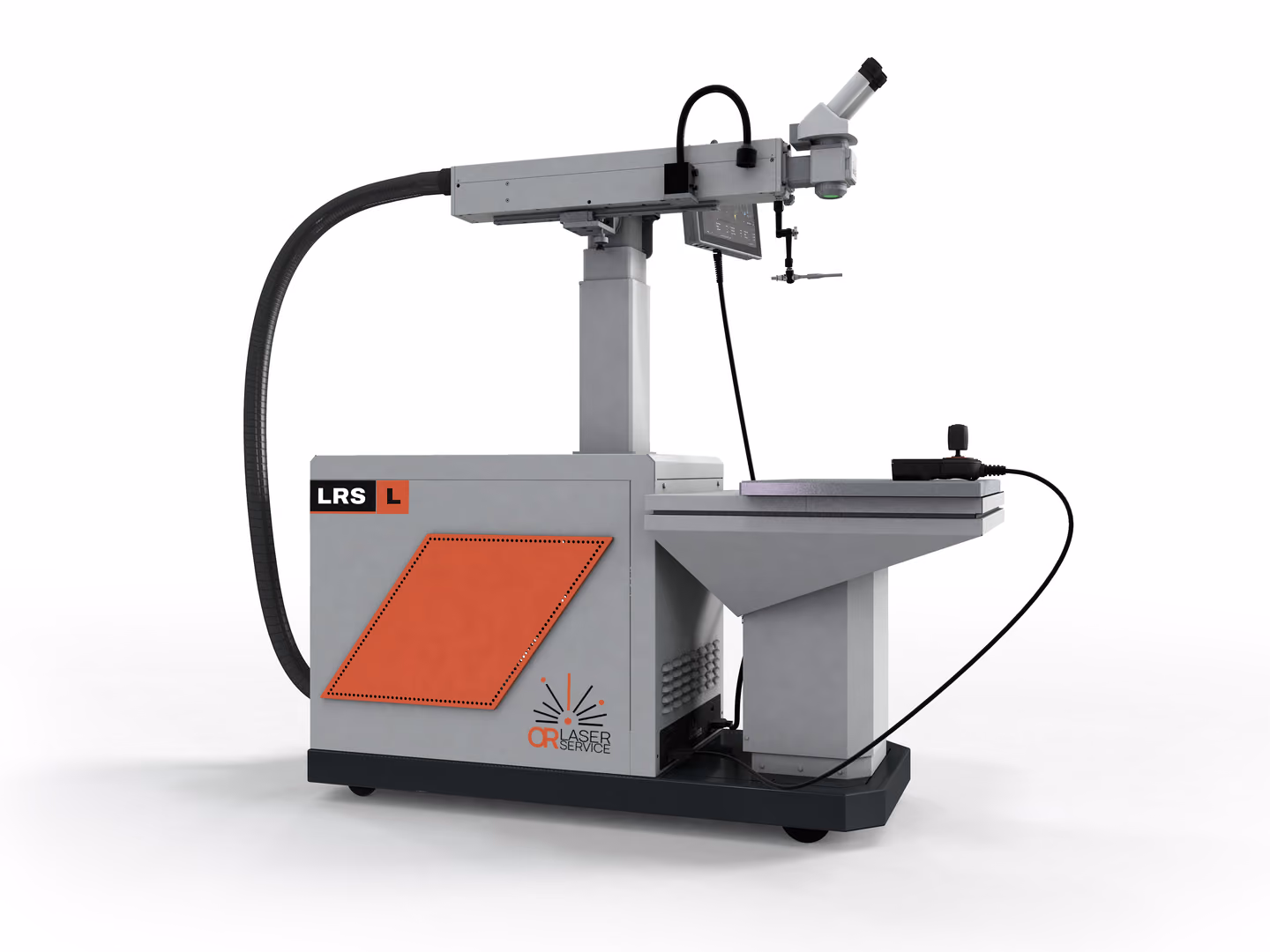

LRS-L
Pulsed laser welding on a motor-controlled table. Cost-efficient for small series and single parts.

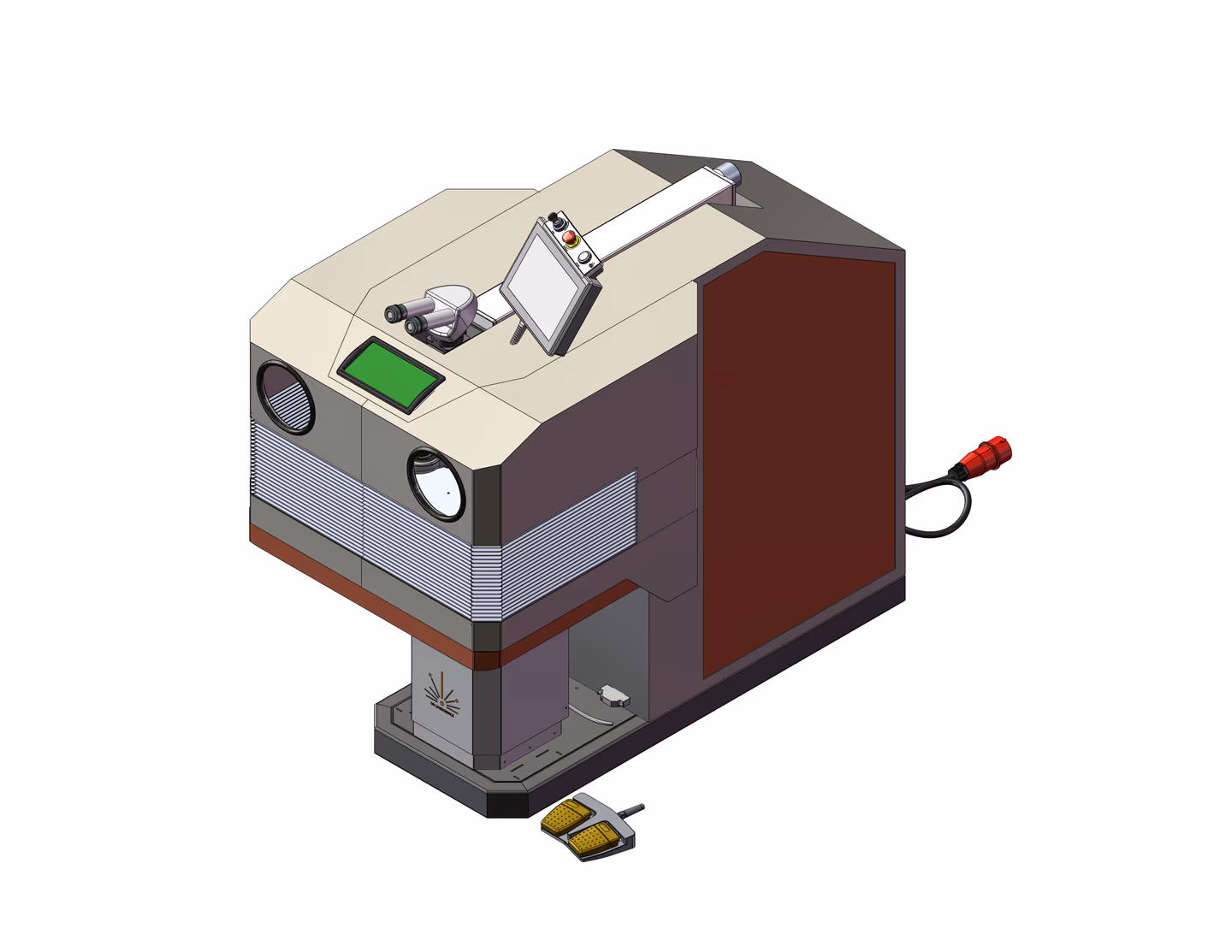

CWSEnclosed laser welding systems
Fully enclosed fibre-laser welding systems. Motor-controlled table up to 250 kg, up to five-axis control, Autoweld and integrated extraction.
Spec comparison – all five models.
| Model | Laser type | Max. mean power | Line voltage (V/Ph/Hz) | Pulse peak power | Dimensions (W×H×L) | Focus diameter | Weight |
|---|---|---|---|---|---|---|---|
| HTS-F | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 950 × 1550 × 1250 mm | 0.05 – 2.0 mm | 250 kg (net) |
| HTS-L | Nd:YAG (Lamp) | 100 – 300 W | 400 / 1 / 50 – 60 | 3.5 – 13 kW | 950 × 1550 × 1250 mm | 0.2 – 2.0 mm | 370 kg (net) |
| LRS-F | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 472 × 1270 × 1160 mm | 0.05 – 2.0 mm | 190 kg (net) |
| LRS-L | Nd:YAG (Lamp) | 100 – 300 W | 400 / 1 / 50 – 60 | 3.5 – 13 kW | 472 × 1270 × 1160 mm | 0.2 – 2.0 mm | 190 kg (net) |
| CWS | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 750 × 1300 × 1403 mm | 0.05 – 2.0 mm | 450 kg (net) |
