CWS
The universal laser solution. Fully enclosed fibre-laser welding.
Laser typeYb:YAG (Fibre)
Max. mean power150 – 600 W
Pulse peak power1.5 – 6 kW
Weight450 kg (net)
Overview

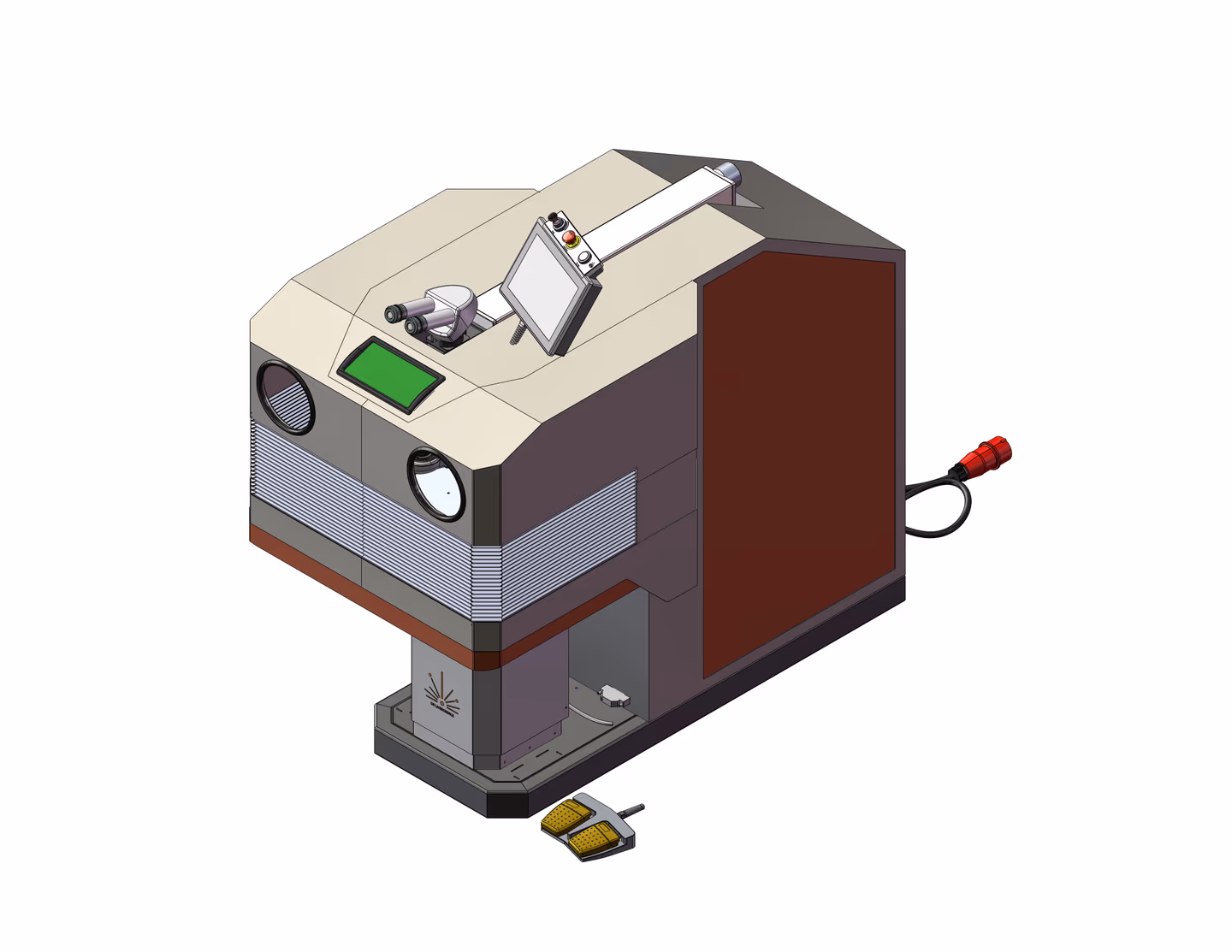

The CWS (Closed Welding System) is OR's fully enclosed fibre-laser welding system – a universal solution that keeps the laser safely contained while the operator works at the front. A motor-controlled X-Y-Z table carries up to 250 kg on a 500 × 410 mm hole-pattern plate, with up to five-axis control and a 300 mm z-stroke. Parameters are set from a touch display; integrated smoke extraction keeps the enclosure clear and Autoweld runs automated welding cycles. Crane loading and a broad accessory range adapt it to heavy or awkward parts. Yb:YAG fibre source, 150 to 600 W, water/air or water/water cooling, 450 kg.
- Fully enclosed fibre laser
- Up to five-axis control
- Autoweld
Specifications
Laser type Yb:YAG (Fibre)
Max. mean power 150 – 600 W
Line voltage (V/Ph/Hz) 230 / 1 / 50
Pulse frequency 0.1 – 100 Hz
Pulse peak power 1.5 – 6 kW
Pulse duration 0.1 – 20 ms
Dimensions (W×H×L) 750 × 1300 × 1403 mm
Focus diameter 0.05 – 2.0 mm
Weight 450 kg (net)
Applications
-
Series production
Automated, repeatable welding cycles via Autoweld.
-
Tool & mould making
Repairing mould inserts and worn injection tools.
-
Medical
Implants and instruments for invasive procedures.
-
Aeronautical
Engine components and complex aviation alloys.
-
Mechanical engineering
Machine components in complex alloys.
How it compares
| Model | Laser type | Max. mean power | Line voltage (V/Ph/Hz) | Pulse peak power | Dimensions (W×H×L) | Focus diameter | Weight |
|---|---|---|---|---|---|---|---|
| CWS (this model) | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 750 × 1300 × 1403 mm | 0.05 – 2.0 mm | 450 kg (net) |
| HTS-F | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 950 × 1550 × 1250 mm | 0.05 – 2.0 mm | 250 kg (net) |
| HTS-L | Nd:YAG (Lamp) | 100 – 300 W | 400 / 1 / 50 – 60 | 3.5 – 13 kW | 950 × 1550 × 1250 mm | 0.2 – 2.0 mm | 370 kg (net) |
| LRS-F | Yb:YAG (Fibre) | 150 – 600 W | 230 / 1 / 50 | 1.5 – 6 kW | 472 × 1270 × 1160 mm | 0.05 – 2.0 mm | 190 kg (net) |
| LRS-L | Nd:YAG (Lamp) | 100 – 300 W | 400 / 1 / 50 – 60 | 3.5 – 13 kW | 472 × 1270 × 1160 mm | 0.2 – 2.0 mm | 190 kg (net) |
